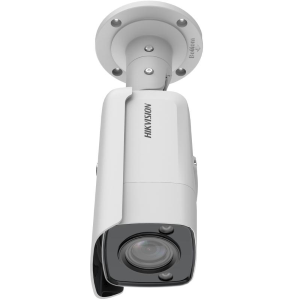

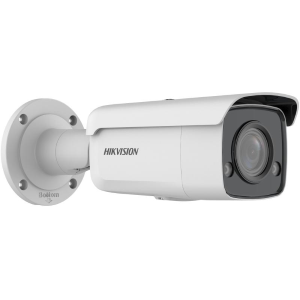

4 K COLORVU FIXED BULLET NETWORK CAMERA
- Imagens de alta qualidade com resolução de 8 MP;
- Tecnologia de compressão H.265+ eficiente;
- Imagens nítidas contra luz de fundo forte devido à tecnologia WDR de 130 dB;
- Foco na classificação de pessoas e veículos com base em aprendizagem profunda;
- Imagens coloridas 24 horas por dia, 7 dias por semana;
- Sensor de imagem1/1.2" Progressive Scan CMOS
- Resolução máx.3840 × 2160
- Iluminação mínimaColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
- Tempo do obturador1/3 s to 1/100,000 s
- Ajuste de ÂnguloPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
- Lentes
- Focal Length & FOV
2.8 mm: horizontal FOV102°, vertical FOV 52°, diagonal FOV 124°
4 mm: horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
- Iris TypeFixed
- AberturaF1.0
- Depth of Field
2.8 mm: 4.5 m to ∞
4 mm: 7 m to ∞
6 mm: 13 m to ∞
- DORI
- DORI
2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m
4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m
6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m
- luminador
- Tipo de luz suplementarWhite Light
- Faixa de luz suplementar60 m
- Luz complementar inteligenteYes
- Vídeo
- Convencional
50 Hz:
25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
- Subfluxo
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
- Transmissão terciária
50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
- Compressão de vídeo
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Taxa de bits de vídeo32 Kbps to 16 Mbps
- Tipo H.264Baseline Profile/Main Profile/High Profile
- Tipo H.265Main Profile
- Controle da taxa de bitsCBR/VBR
- Codificação de vídeo escalável (SVC)Yes
- Região de interesse (ROI)1 fixed region for main stream and sub-stream
- Rede
- ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
- Visualização ao vivo simultâneaUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
- Usuário/HostUp to 32 users. 3 user levels: administrator, operator and user
- SegurançaPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Armazenamento de redeNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Navegador da web
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Imagem
- Interruptor de parâmetros de imagemYes
- Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Switch Dia/NoiteDay, Night, Auto, Schedule
- Ampla Faixa Dinâmica (WDR)130 dB
- SNR≥ 52 dB
- Aprimoramento da imagemBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Armazenamento a bordoBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
- Reset KeyYes
- Evento
- Eventos básicosMotion detection (human and vehicle targets classification), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Evento inteligente
Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
Scene change detection
- LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email
- Deep Learning Function
- Captura facialYes
- Geral
- Alimentação
12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: (802.3af, Class 3, 36 V to 57 V), 0.27 A to 0.17 A, max. 9.5 W
- DimensõesØ105 × 289.5 mm (Ø4.1" × 11.4")
- Dimensões do pacote385 × 190 × 180 mm (15.2" × 7.5" × 7.1")
- PesoApprox. 1190 g (2.6 lb.)
- Com peso do pacoteApprox. 1700 g (3.7 lb.)
- Condições de armazenamento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Condições de inicialização e operação-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Idioma
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Função geralAnti-flicker, heartbeat, password reset via e-mail, pixel counter
- Aprovação
- EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
- Segurança
UL (UL 62368-1);
CB (IEC 62368-1:2014+A11)
CE-LVD (EN 62368-1:2014/A11:2017)
- Ambiente
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProteçãoIP67 (IEC 60529-2013)
